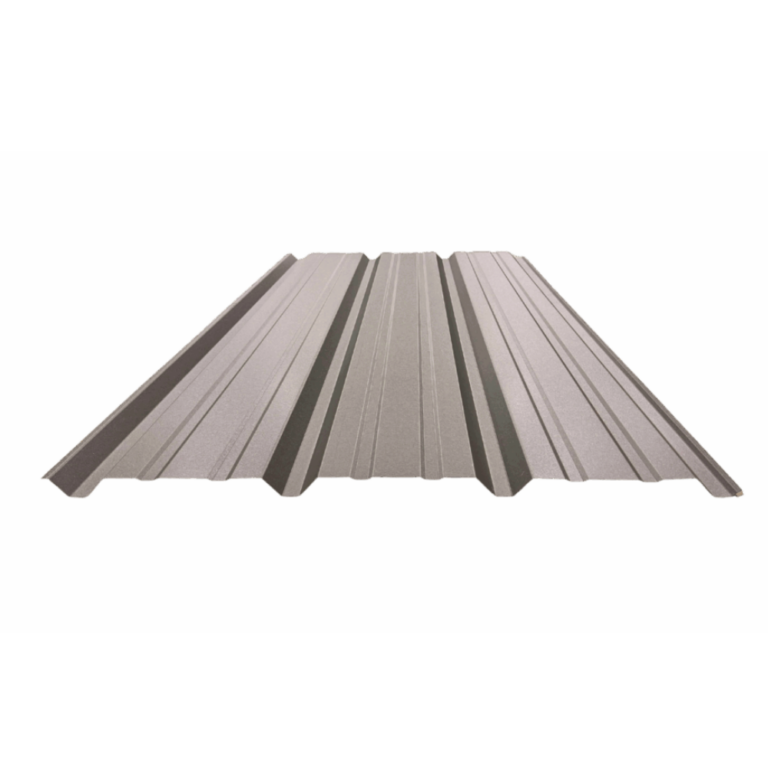

Reverse PBR Panel
- Panel coverage: 36 inches of effective coverage per panel
- Steel thickness: Standard 26-gauge steel with 24-gauge available by request for added strength
- Rib design: 1 and 1/4 inch rib height spaced 12 inches on center for structural performance on sidewalls
- Length options: Produced in custom lengths from 3 feet up to 24 feet to match your project layout
- Recommended framing: Installs on girt or purlin spacing from 2 feet to 4 feet for flexible design
The Reverse PBR Panel from Metal Exteriors is designed for sidewall projects that need a bold profile and dependable long-term strength. With its ribbed design and generous 36 inches of coverage, it works well on agricultural, industrial, and light commercial buildings where performance and appearance both matter. The system is engineered to enhance effective R value and pairs with a hidden fastener trim system for a more refined finished look. Produced from heavy-duty 26-gauge steel with an option for 24-gauge, this panel is built for projects that demand durability and consistent results over time.
|
Specification |
Value |
|
Panel coverage |
36” |
|
Panel length range |
3’ to 24’ |
|
Rib spacing |
12” on center |
|
Rib height |
1-1/4” |
|
Steel gauge standard |
26 GA |
|
Steel gauge optional |
24 GA by request |
|
Recommended girt or purlin spacing |
2’ to 4’ |
|
Panel type |
Reverse PBR exposed fastener panel for agricultural, industrial, and light commercial use |
|
Coating warranty |
Lifetime transferable coating warranty |
|
Panel coverage per sheet |
Full 36” of coverage |
|
Rib profile |
Clean ribbed profile with 1-1/4” ribs |
