Metal Board and Batten Siding

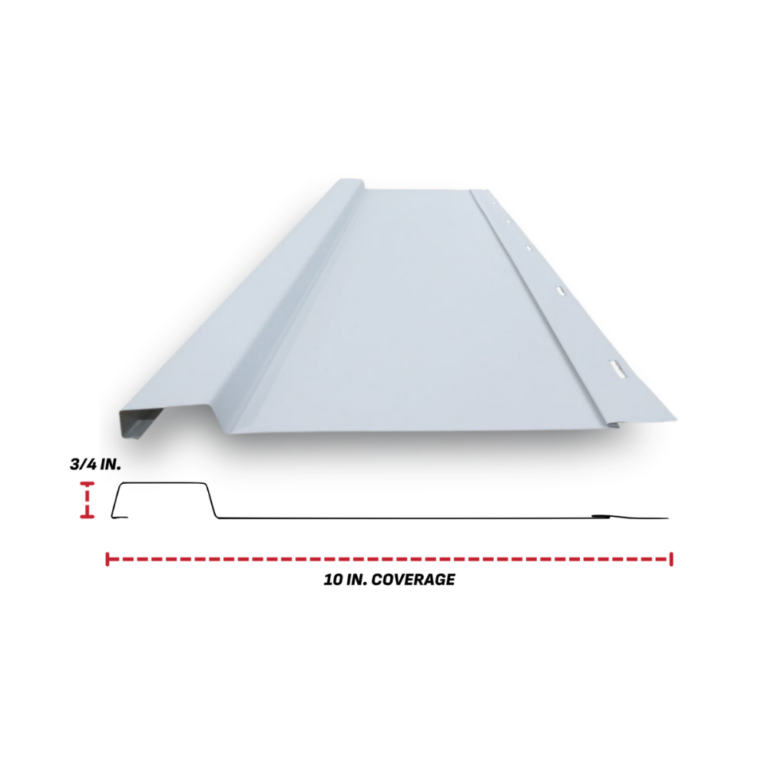

- Panel coverage: 10 inches net panel coverage for consistent vertical lines across the wall
- Batten profile: 0.75-inch rib height with a 2-inch batten profile for distinct board and batten depth
- Material gauge: Manufactured from premium 26 GA steel for improved rigidity and long-term performance
- Custom lengths: Panels are made to order in custom lengths up to 20 feet to match project requirements and reduce seams
- Fastening system: Concealed fastener design protects attachment points from the elements and maintains a refined appearance
Metal Batten from Metal Exteriors is a vertical metal board and batten siding system designed for projects that need strength, low maintenance, and timeless architectural style. It delivers the classic look of traditional board and batten siding in durable steel so you get crisp vertical lines and long lasting curb appeal on modern homes light commercial buildings and agricultural structures. With a concealed fastener design, a tall metal batten profile, and custom cut panels up to 20 feet long, this siding is built to handle real-world weather while keeping your exterior looking sharp for years.
Specification | Details |
Panel Coverage | 10-inch net coverage |
Batten Size | 0.75-inch rib height with 2-inch batten profile |
Material Gauge | 26 GA steel |
Custom Lengths | Made to order per project requirements, with panel lengths available up to 20 feet |
Fastening System | Concealed fastener design |
Installation Orientation | Vertical installation |
Substrate Requirement | Must be installed over a solid substrate |
Panel Profile | 0.75 inch x 2 inch metal batten with 10 inch panel width to replicate traditional wood board and batten siding |
Warranty | Limited lifetime transferable warranty from AkzoNobel |
Maintenance | Minimal maintenance required with a long-lasting coating that reduces the need for repainting |
Sustainability | 100 percent recyclable and often manufactured with recycled steel |
Energy Performance | Offers improved energy efficiency compared to wood, plastic, or cement-based siding alternatives |
Lead Time | Typical production and delivery lead time is 1 to 2 weeks, depending on quantity and color selection |
Sample Availability | Free product samples available upon request |
Shipping Area | Ships across the United States and select projects in parts of Canada |
Takeoffs and Cut Lists | Free takeoffs and cut lists available for formal project quotes |
Steel Quality | Premium 26 GA steel used instead of thinner 28 or 29 GA panels for increased quality and performance over time |
